SMMU Software Architectural Design (SWE.2)

Note: The images in this document were generated using AI.

1 Module Overview

1.1 Purpose of Module

The SMMU Software Architectural Design defines the high-level structure and components of the SMMUv3 driver. It bridges the gap between software requirements (SWE.1) and detailed design (SWE.3), ensuring the system is robust, performant, and maintainable.

1.2 Role of Module

The SMMU module acts as the IOMMU driver for ARM64 systems. Its primary roles are:

• Translation Management: Managing Page Tables (Stage 1/2) for DMA address translation.
• Isolation: Enforcing access control by ensuring devices can only access mapped memory.
• Hardware Abstraction: Encapsulating SMMUv3 hardware details (Queues, Tables) from the generic IOMMU subsystem.
• Fault Reporting: Catching and reporting DMA faults (e.g., translation errors) to the kernel.

1.3 Boundary of Module

• Interfaces: Interacts with the Linux IOMMU Subsystem (upper layer), ACPI/Device Tree (configuration), and SMMUv3 Hardware (lower layer).
• Scope: Covers arm-smmu-v3.c, io-pgtable-arm.c (interaction), and associated headers.
• Exclusions: Does not include the core Logic of the PCI subsystem or the generic IOMMU API itself.

2 Module Architecture

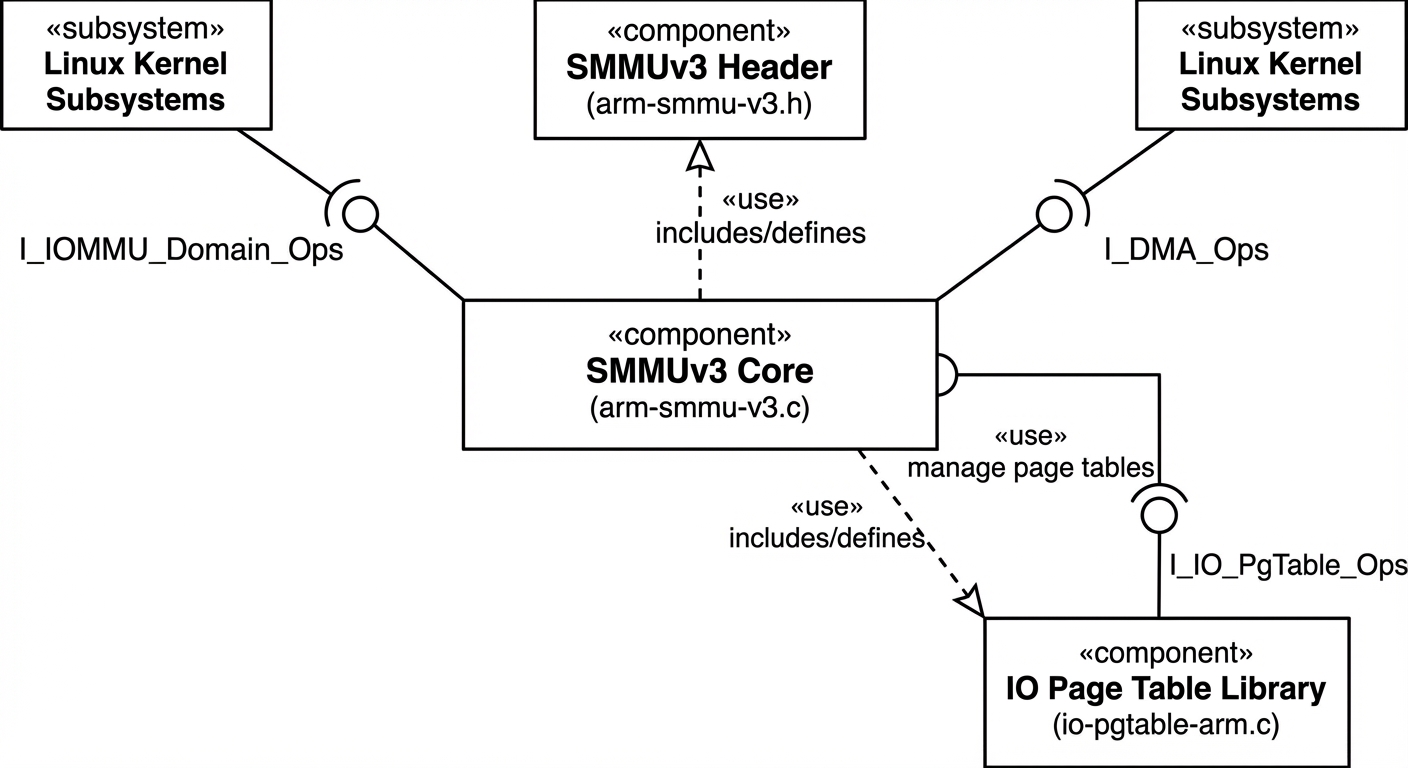

2.1 Implementation View

The implementation view shows the static code structure and file organization.

Role of Implementation elements

Implementation Element	Role
SMMUv3 Core (arm-smmu-v3.c)	Main driver logic: Initialization, Queue Management, Command Issue.
IO Page Table (io-pgtable-arm.c)	Helper library for manipulating ARMv8/LPAE page table formats.
SMMUv3 Header (arm-smmu-v3.h)	Defines hardware register offsets, queue entry formats, and macros.

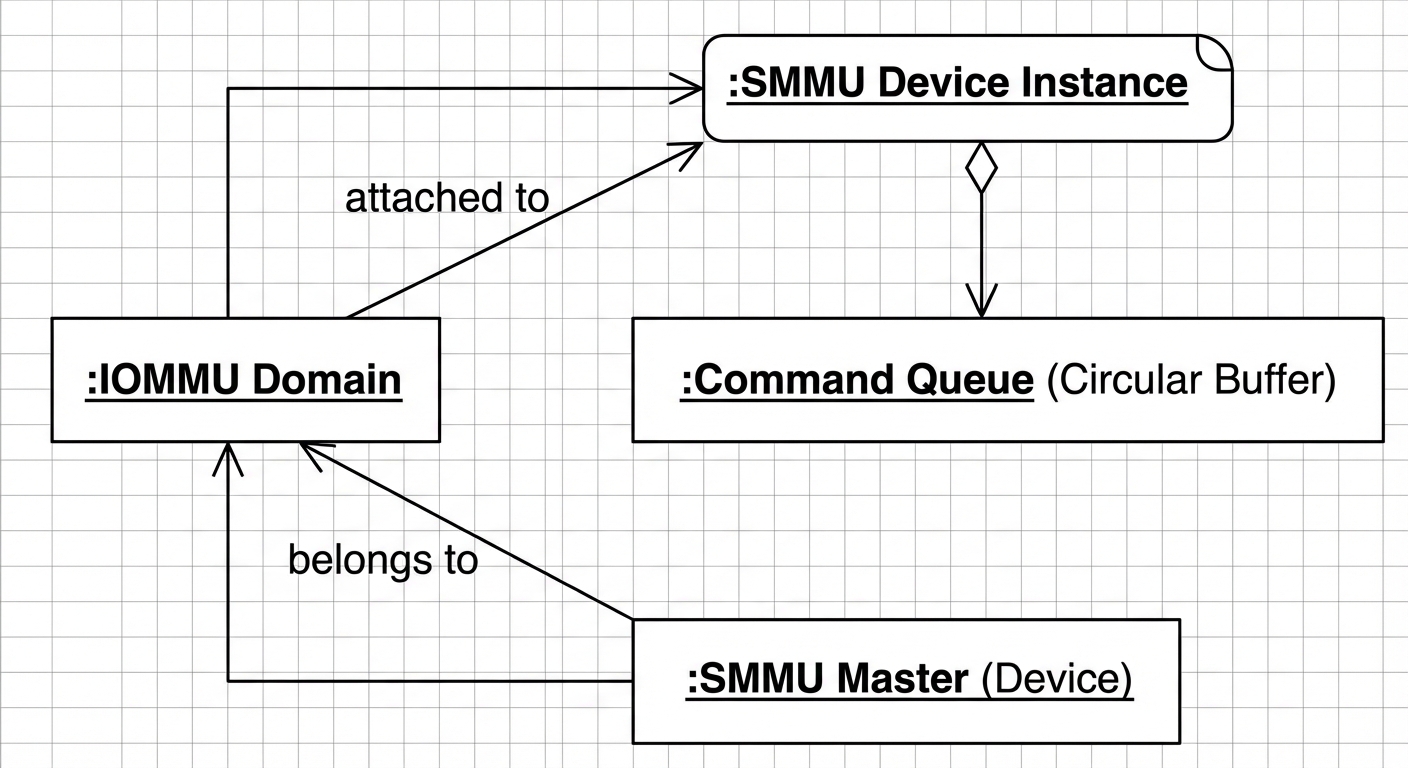

2.2 Runtime View

The runtime view illustrates the dynamic behavior and interaction of objects during execution.

Role of runtime elements

Runtime Element	Role
SMMU Device (arm_smmu_device)	Represents a physical SMMUv3 hardware instance.
SMMU Domain (arm_smmu_domain)	Represents an abstract IOMMU domain (container for mappings).
Master Device (arm_smmu_master)	Represents a client device (e.g., PCIe EP) attached to the SMMU.
Command Queue	Ring buffer for sending commands (TLBI, SYNC) to hardware.

Role of connector

Connector	Role
IOMMU Ops	iommu_ops function table called by the generic IOMMU layer.
MMIO	Memory-Mapped I/O for register access.
DMA	Direct Memory Access for Queue consumption by hardware.

Runtime-to-Implementation Mapping

Runtime View Elements	Implementation View Elements
SMMU Device	struct arm_smmu_device in arm-smmu-v3.c
SMMU Domain	struct arm_smmu_domain in arm-smmu-v3.c
Page Table Ops	struct io_pgtable_ops in io-pgtable-arm.c

2.3 Allocation View

The allocation view maps software components to hardware units.

• SMMU Driver: Runs on the CPU, managing system memory structures (Tables, Queues).
• Hardware Unit: The SMMUv3 hardware fetches commands from memory and performs translations using cached TLBs and the in-memory Stream/Page Tables.

3 Module Interaction

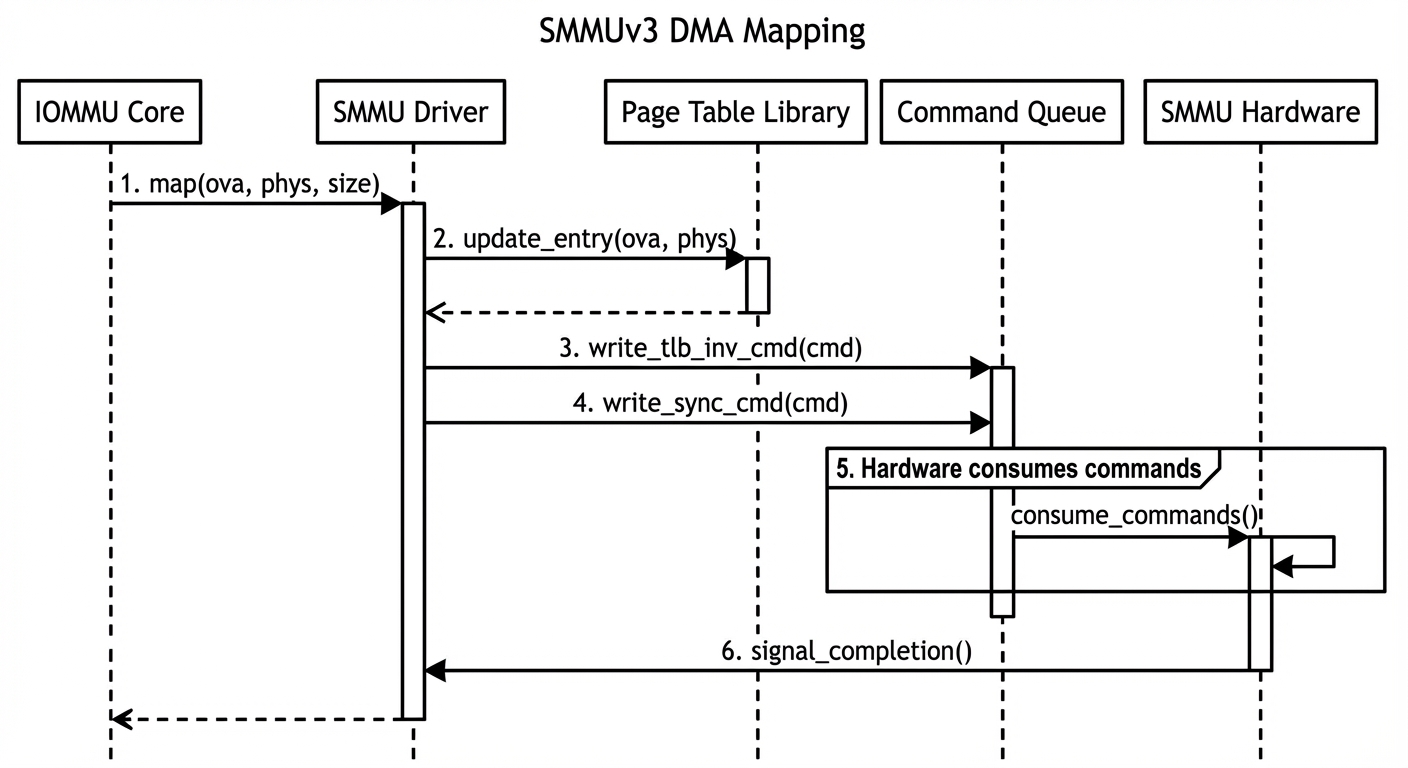

3.1 Interaction: DMA Mapping & TLB Invalidation

This interaction describes the process when a driver maps a buffer for DMA.

Map and Invalidate Sequence

Flow:

1. Device Driver calls dma_map_single().
2. IOMMU Subsystem calls arm_smmu_map().
3. SMMU Driver updates Page Table (via io-pgtable).
4. SMMU Driver issues CMD_TLBI to Command Queue.
5. SMMU Driver issues CMD_SYNC and polls for completion.

4 Annex

4.1 Annex A. Alternative Architecture

4.1.1 Strict vs. Lazy Mode

• Strict Mode: Issue TLB Invalidation (and Sync) immediately after every unmap. Secure but slower.
• Lazy Mode: Defer TLB Invalidation until a threshold is reached or memory is reused. Faster but less secure (theoretical window for use-after-free).
• Selection: The driver supports both, configurable via kernel command line. Default is Strict for safety/security.

4.2 Annex B. Alternative Architecture Evaluation

| ID | Quality Attribute | Score | Reason for Evaluation | | :— | :— | :— | :— | | Alt-01 | Performance | High | Lazy mode significantly improves throughput for high-churn workloads. | | Alt-02 | Security | Low | Lazy mode leaves stale TLB entries window. | | Evaluation Result | Adopt (Configurable) | Allow users to choose based on system requirements (Safety vs. Perf). |

4.3 Annex C. Selected Architectural Design

The selected design uses a Queue-Based Command Interface with support for Strict Mode by default.

• Justification: Aligns with the ARM SMMUv3 specification and prioritizes correctness and isolation (Safety) over raw throughput, while retaining flexibility.

5 Terms and Abbreviations

Terms and Abbreviations	Description
TLBI	TLB Invalidate
IOVA	Input Output Virtual Address
LPAE	Large Physical Address Extension
STE	Stream Table Entry

6 References

Documents Name	Version
SMMU Software Requirements Specification (SWE.1)	1.0
Linux Kernel Documentation (iommu)	6.12
