1 Overview
The SMMU Software Functional Test Specification defines the test cases to verify the functional correctness of the SMMUv3 driver modules. It aims to verify the functions defined in the Detailed Design (SWE.3) and ensure the module meets the functional requirements (SWE.1).
2 Test Environment
| Item | Description |
| :— | :— |
| Test Level | Module Functional Test (SWE.4) |
| Test Framework | KUnit (Kernel Unit Testing) |
| Target Hardware | QEMU (virt machine) |
| Kernel Version | Linux 6.12 |
2.2 System Configuration

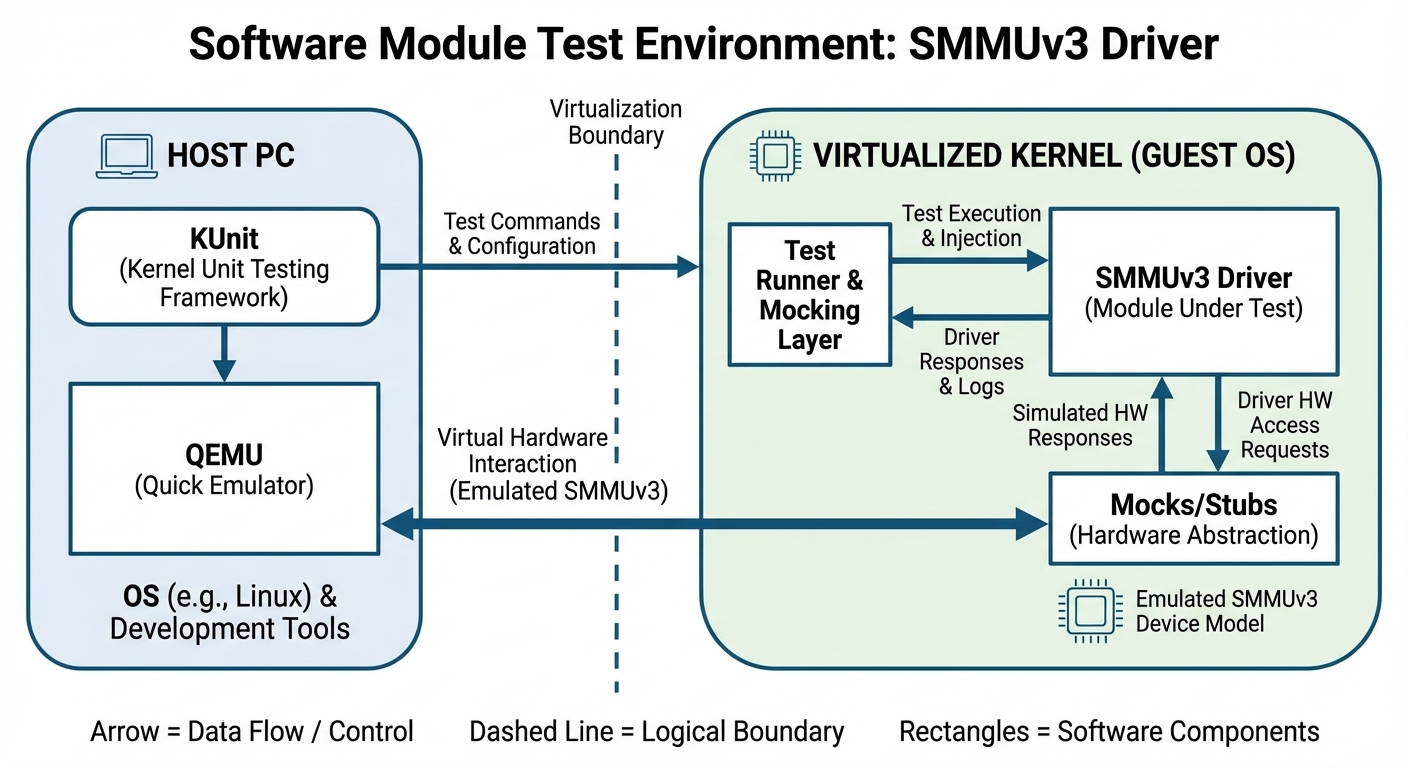

The test environment utilizes the Linux Kernel’s KUnit framework. The SMMU driver functions are tested in isolation (using mocks for hardware registers where necessary) running within a QEMU virtual machine.
3 Test Case
3.1 TC-SMMU-FUNC-01: Initialization Success
Verify arm_smmu_device_probe Success Path
- Traceability: (SWE.3), REQ-SMMU-INIT-01 (SWE.1)
- Description: Verify that
arm_smmu_device_probe returns 0 (success) when valid ACPI/DT data is present and memory allocation succeeds.
| Input |
Pre-Condition |
Procedure |
Expected Result |
Valid platform_device struct |
Kernel Booted, KUnit Loaded |
Call arm_smmu_device_probe(pdev) |
Function returns 0. |
| Test Item |
Input Data |
Expected Result |
| Return Value |
Valid pdev |
0 |
| Device State |
N/A |
smmu->features populated. |
3.2 TC-SMMU-FUNC-02: Map IOVA Success
Verify arm_smmu_map Logic
- Traceability: (SWE.3), REQ-SMMU-MAP-01 (SWE.1)
- Description: Verify that
arm_smmu_map correctly writes a Page Table Entry (PTE) and issues a TLB invalidation.
| Input |
Pre-Condition |
Procedure |
Expected Result |
| IOVA=0x1000, PA=0x2000, Size=4KB |
Domain initialized |
Call arm_smmu_map(domain, 0x1000, 0x2000, 4096, PROT_READ) |
Function returns 0. |
| Test Item |
Input Data |
Expected Result |
| Return Value |
valid params |
0 |
| Page Table |
IOVA 0x1000 |
PTE contains PA 0x2000. |
3.3 TC-SMMU-FUNC-03: Map Invalid Size
Verify arm_smmu_map Error Handling
- Traceability: (SWE.3)
- Description: Verify that
arm_smmu_map returns an error when an unsupported page size is requested.
| Input |
Pre-Condition |
Procedure |
Expected Result |
| Size=3KB (Unaligned) |
Domain initialized |
Call arm_smmu_map(domain, ..., 3072, ...) |
Function returns -EINVAL. |
| Test Item |
Input Data |
Expected Result |
| Return Value |
Size=3072 |
-EINVAL |
4 Terms and Abbreviations
| Terms and Abbreviations |
Description |
| KUnit |
Kernel Unit Testing Framework |
| PTE |
Page Table Entry |
5 References
| Documents Name |
Version |
| SMMU Software Requirements Specification (SWE.1) |
1.0 |
| SMMU Software Detailed Design (SWE.3) |
1.0 |
