SMMU Software Requirements Specification (SWE.1)
Note: The images in this document were generated using AI.
1 Overview
1.1 Purpose and Role of Module
1.1.1 Module Overview
The System Memory Management Unit (SMMU) driver is responsible for managing the SMMUv3 hardware, which provides address translation and access control for DMA-capable master devices. This document specifies the software requirements for the SMMUv3 driver, targeting Linux Kernel 6.12. It ensures isolation between devices and supports virtualization (Stage 1/Stage 2 translation).
1.1.2 Internal and External Factors of Module
| Category | Factors |
|---|---|
| Internal Factors | • Translation Tables: Management of page tables (LPAE/ARMv8 format). • Queue Management: Circular buffer logic for Command and Event queues. • Stream Table: Configuration of Stream Table Entries (STEs). |
| External Factors | • Master Devices: PCIe and Platform devices initiating DMA. • IOMMU Subsystem: Linux generic IOMMU layer providing API calls. • Firmware: ACPI (IORT) or Device Tree description of SMMU topology. |

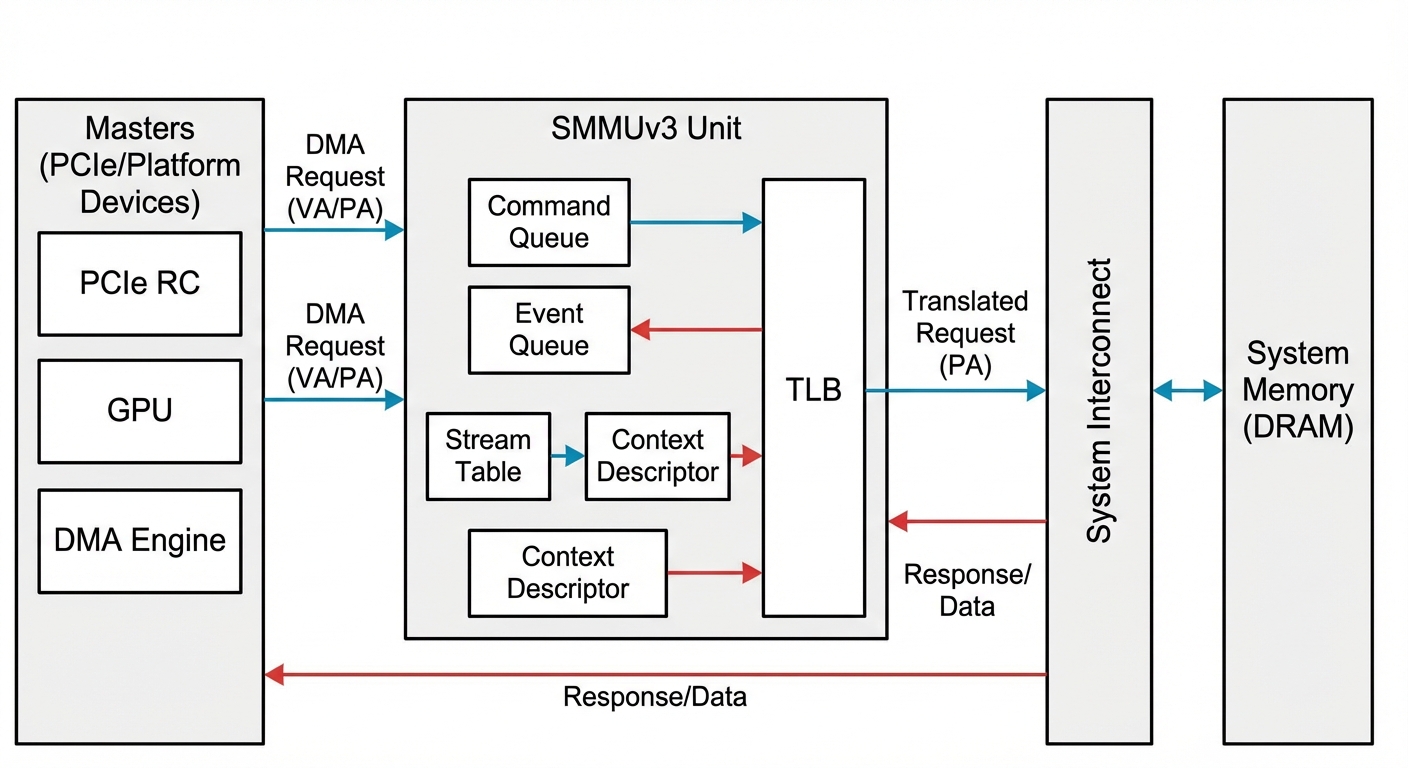

1.2 Hardware Diagram
1.3 Scope of Module
This Software Requirements Specification covers the initialization, configuration, and runtime operation of the SMMUv3 driver. It includes:
- Detection and initialization of SMMUv3 hardware.
- Management of IOMMU domains (allocation, attach/detach).
- Map and Unmap operations for DMA addresses.
- Handling of Context Faults and Events.
1.4 Software Context Diagram
2 Feature & Specification
2.1 Feature list
| No | Feature | Details | Remarks |
|---|---|---|---|
| 1 | Initialization | Probing SMMUv3, allocating queues (CMD, EVT, PRI). | Boot time |
| 2 | Domain Management | Creating/Destroying IOMMU domains, attaching devices. | Runtime |
| 3 | Translation | Mapping IOVA to Physical Addresses (Page Tables). | Runtime |
| 4 | Fault Handling | Reporting and recovering from translation faults. | Runtime |
2.2 Specification
| No | Item | Specification | Remarks |
|---|---|---|---|
| 1 | Architecture | ARM System Memory Management Unit Architecture Specification v3 | ARM IHI 0070 |
| 2 | Kernel Version | Linux Kernel 6.12 LTS | |
| 3 | Interface | Linux iommu_ops API |
3 Requirements
3.1 Functional Requirements
3.1.1 Initialization (REQ-SMMU-INIT)
| Attribute | Description |
|---|---|
| Feature | Initialization |
| Quality Attribute | Reliability |
| Input/Stimulus | System Boot, ACPI IORT / Device Tree |
| Output/Response | Hardware reset, Queues enabled, Driver registered. |
| Pass/Fail Condition | Driver probes successfully; dmesg shows SMMU initialized. |
| Verification Method | Unit Test / Integration Test |
| Verification Environment | QEMU / EVB Target |
Detailed Requirements:
- REQ-SMMU-INIT-01: The driver SHALL detect SMMUv3 hardware via ACPI IORT or Device Tree.
- REQ-SMMU-INIT-02: The driver SHALL allocate and initialize the Command Queue and Event Queue in system memory.
- REQ-SMMU-INIT-03: The driver SHALL allocate the Stream Table (Linear or 2-level) based on hardware capability.
3.1.2 Translation & Mapping (REQ-SMMU-MAP)
| Attribute | Description |
|---|---|
| Feature | Translation |
| Quality Attribute | Functionality |
| Input/Stimulus | iommu_map() call |
| Output/Response | Page Table Entry (PTE) written, TLB invalidated. |
| Pass/Fail Condition | Device can access physical memory via IOVA. |
| Verification Method | System Test |
| Verification Environment | EVB Target |
Detailed Requirements:
- REQ-SMMU-MAP-01: The driver SHALL support mapping of 4KB, 64KB, and 2MB pages (depending on granule).
- REQ-SMMU-MAP-02: The driver SHALL issue a CMD_TLBI (TLB Invalidate) command to the SMMU after modifying page tables.
- REQ-SMMU-MAP-03: The driver SHALL support Stage 1 (VA->PA) translation for standard DMA.
3.1.3 Device Attachment (REQ-SMMU-ATTACH)
| Attribute | Description |
|---|---|
| Feature | Domain Management |
| Quality Attribute | Functionality |
| Input/Stimulus | iommu_attach_device() call |
| Output/Response | Stream Table Entry (STE) updated to point to Context Descriptor (CD). |
| Pass/Fail Condition | Device traffic is routed through the assigned domain. |
| Verification Method | Integration Test |
| Verification Environment | EVB Target |
Detailed Requirements:
- REQ-SMMU-ATTACH-01: The driver SHALL write a valid STE pointing to the domain’s Context Descriptor when a device is attached.
- REQ-SMMU-ATTACH-02: The driver SHALL bypass translation (STE.Config=Bypass) if the device is attached to an Identity domain.
3.1.4 Fault Handling (REQ-SMMU-FAULT)
| Attribute | Description |
|---|---|
| Feature | Fault Handling |
| Quality Attribute | Reliability |
| Input/Stimulus | Context Fault (Hardware Interrupt) |
| Output/Response | Event Queue read, Fault reported to kernel. |
| Pass/Fail Condition | Fault details (StreamID, IOVA) logged in kernel ring buffer. |
| Verification Method | System Test |
| Verification Environment | EVB Target |
Detailed Requirements:
- REQ-SMMU-FAULT-01: The driver SHALL handle the Event Queue interrupt.
- REQ-SMMU-FAULT-02: The driver SHALL decode the event packet and report the faulting StreamID and Address.
3.2 Non-Functional Requirements
3.2.1 Quality Requirements
| Attribute | Description |
|---|---|
| Feature | N/A |
| Quality Attribute | Performance |
| Input/Stimulus | Heavy Map/Unmap load |
| Output/Response | Efficient command batching. |
| Pass/Fail Condition | Throughput degradation < 5% vs. bypass. |
| Verification Method | Performance Measurement |
| Verification Environment | Real-time Kernel Setup |
Detailed Requirements:
- REQ-SMMU-NF-01: The driver SHOULD use CMD_SYNC sparingly to batch multiple TLB invalidation commands.
- REQ-SMMU-NF-02: The interrupt handler for the Event Queue MUST NOT block for excessive periods.
3.2.2 Constraints
| Attribute | Description |
|---|---|
| Feature | N/A |
| Constraint | Interface Compliance |
| Description | The driver MUST implement the standard Linux iommu_ops structure. |
Detailed Requirements:
- REQ-SMMU-IF-01: The driver MUST register with the Linux IOMMU subsystem using
iommu_device_register.
4 Annex

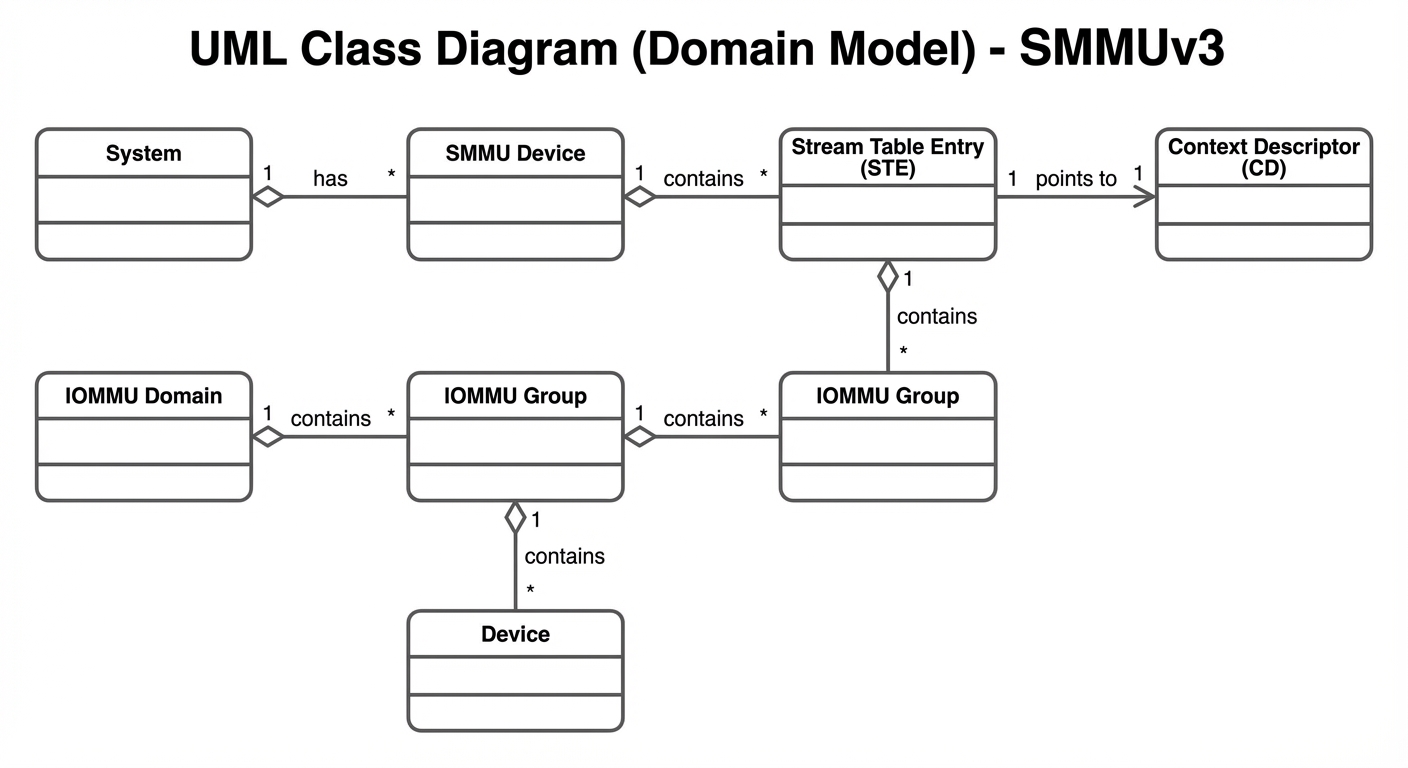

4.1 Annex A. Domain Model
4.2 Annex B. Quality Scenario

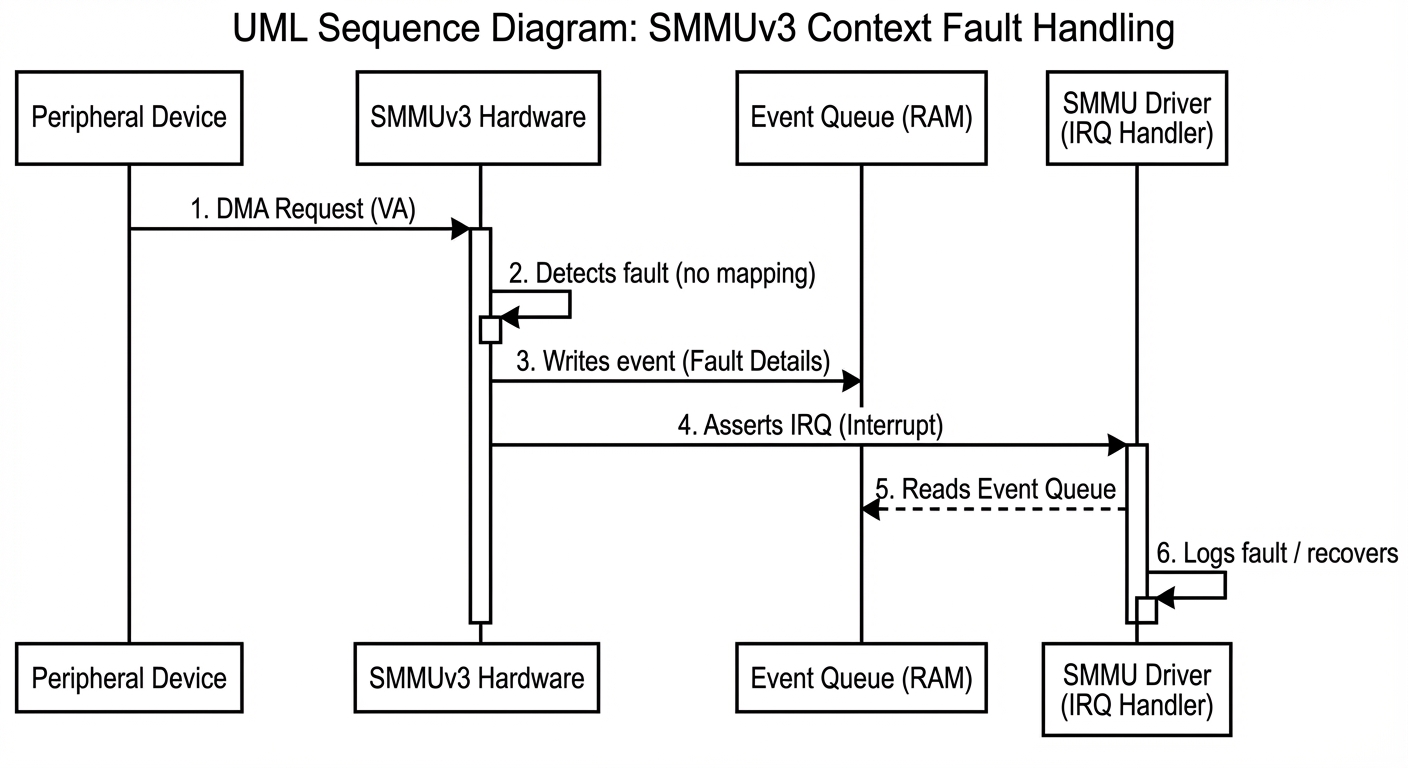

Scenario: Context Fault Handling
4.3 Annex C. Quality Scenario Analysis
Analysis of the fault handling latency and robustness.
5 Terms and Abbreviations
| Term | Description |
|---|---|
| SMMU | System Memory Management Unit |
| IOVA | Input Output Virtual Address |
| STE | Stream Table Entry |
| CD | Context Descriptor |
| TLB | Translation Lookaside Buffer |
| IORT | IO Remapping Table (ACPI) |
6 References
| Document Name | Version |
|---|---|
| ARM SMMUv3 Architecture Specification | IHI 0070 |
| Linux Kernel Source Code | 6.12 |
